Fleximec Uniones_Milimetricas

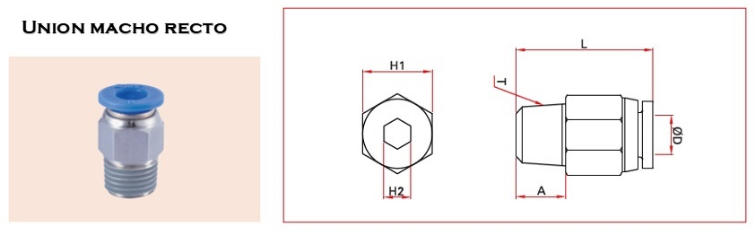

Codigo	OD	Hilo (T)	L	A	H1 (HEX)	H2
12.1400.0402	4	1/8" NPT	20.5mm	8	10	3
12.1400.0404	4	1/4" NPT	19.0mm	10	14	3
12.1400.0602	6	1/8" NPT	21.3mm	8	12	4
12.1400.0604	6	1/4" NPT	23.0mm	10	14	4
12.1400.0606	6	3/8" NPT	21.0mm	11	17	4
12.1400.0608	6	1/2" NPT	25.0mm	14	21	4
12.1400.0802	8	1/8" NPT	26.0mm	8	14	5
12.1400.0804	8	1/4" NPT	25.0mm	10	14	5
12.1400.0806	8	3/8" NPT	22.0mm	11	17	5
12.1400.0808	8	1/2" NPT	26.0mm	14	21	5
12.1400.1002	10	1/8" NPT	30.0mm	8	17	5
12.1400.1004	10	1/4" NPT	31.5mm	10	17	6
12.1400.1006	10	3/8" NPT	29.0mm	11	17	8
12.1400.1008	10	1/2" NPT	27.0mm	14	21	8
12.1400.1204	12	1/4" NPT	32.8mm	10	21	5
12.1400.1206	12	3/8" NPT	30.6mm	11	21	8
12.1400.1208	12	1/2" NPT	31.6mm	14	21	8
12.1400.1406	14	3/8" NPT	34.0mm	11	22	8
12.1400.1408	14	1/2" NPT	32.5mm	14	22	10
12.1400.1606	16	3/8" NPT	36.5mm	11	24	8
12.1400.1608	16	1/2" NPT	36.5mm	14	24	10

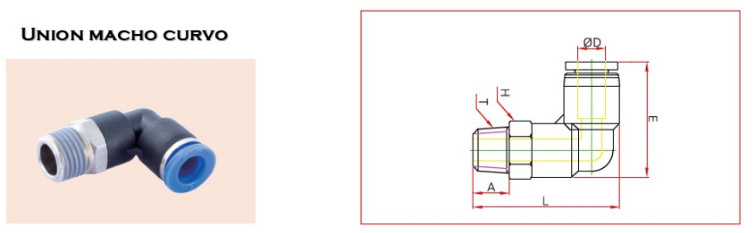

Codigo	OD	Hilo (T)	E	L	A	H
12.1490.0402	4	1/8" NPT	23.5mm	30.3mm	8	10
12.1490.0404	4	1/4" NPT	23.5mm	32.7mm	10	14
12.1490.0602	6	1/8" NPT	24.0mm	31.5mm	8	12
12.1490.0604	6	1/4" NPT	24.5mm	33.9mm	10	14
12.1490.0606	6	3/8" NPT	24.0mm	35.2mm	11	17
12.1490.0608	6	1/2" NPT	24.5mm	38.7mm	14	21
12.1490.0802	8	1/8" NPT	29.0mm	35.0mm	8	14
12.1490.0804	8	1/4" NPT	29.0mm	37.0mm	10	14
12.1490.0806	8	3/8" NPT	29.0mm	38.3mm	11	17
12.1490.0808	8	1/2" NPT	29.5mm	41.8mm	14	21
12.1490.1002	10	1/8" NPT	36.5mm	41.8mm	8	17
12.1490.1004	10	1/4" NPT	36.5mm	43.8mm	10	17
12.1490.1006	10	3/8" NPT	36.5mm	44.8mm	11	17
12.1490.1008	10	1/2" NPT	36.5mm	48.3mm	14	21
12.1490.1204	12	1/4" NPT	39.0mm	46.3mm	10	17
12.1490.1206	12	3/8" NPT	39.0mm	48.3mm	11	17
12.1490.1208	12	1/2" NPT	39.0mm	50.8mm	14	21
12.1490.1406	14	3/8" NPT	39.0mm	49.0mm	11	19
12.1490.1408	14	1/2" NPT	39.0mm	51.5mm	14	21
12.1490.1606	16	3/8" NPT	41.0mm	51.7mm	11	19
12.1490.1608	16	1/2" NPT	41.0mm	54.2mm	14	21

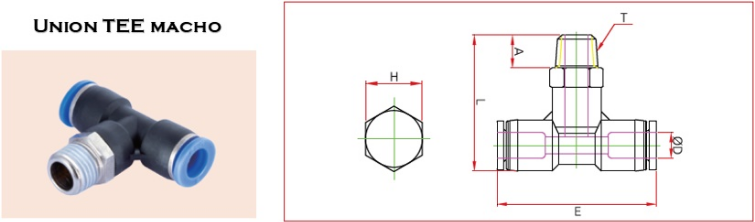

Codigo	OD	Hilo (T)	E	L	A	H
12.1300.0608	6	1/8" NPT	38.0mm	31.5mm	8	12
12.1300.0604	6	1/4" NPT	38.0mm	34.0mm	10	14
12.1300.0802	8	1/8" NPT	44.5mm	35.0mm	8	14
12.1300.0804	8	1/4" NPT	44.5mm	37.0mm	10	14
12.1300.1002	10	1/8" NPT	56.5mm	42.2mm	8	17
12.1300.1004	10	1/4" NPT	56.5mm	44.5mm	10	17
12.1300.1006	10	3/8" NPT	56.5mm	45.5mm	11	17
12.1300.1204	12	1/4" NPT	58.0mm	46.3mm	10	19
12.1300.1206	12	3/8" NPT	58.0mm	48.3mm	11	19
12.1300.1208	12	1/2" NPT	58.0mm	50.5mm	14	21

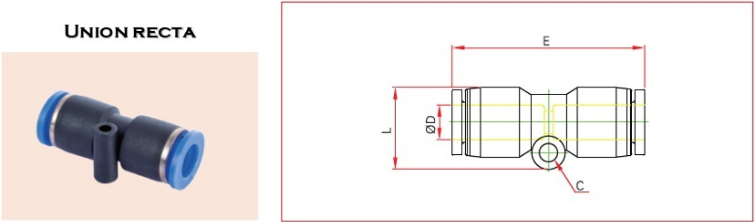

Codigo	OD	E	L	C
12.1000.0404	4	33.0mm	13.5mm	3.2
12.1000.0606	6	34.5mm	15.5mm	3.2
12.1000.0808	8	38.5mm	17.5mm	3.2
12.1000.1010	10	48.5mm	21.5mm	4.2
12.1000.1212	12	49.0mm	24.0mm	4.2
12.1000.1414	14	51.5mm	25.0mm	4.5
12.1000.1616	16	63.5mm	28.5mm	5.2

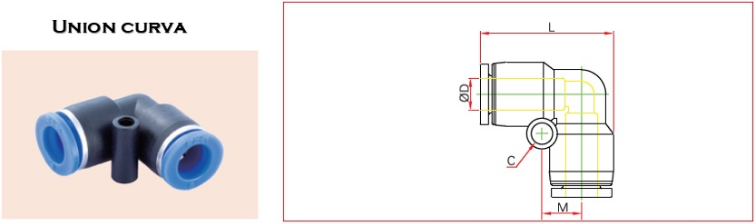

Codigo	OD	L	M	C
12.1090.0404	4	24.0mm	7.0mm	3.2
12.1090.0606	6	25.0mm	8.0mm	3.2
12.1090.0808	8	29.0mm	9.0mm	3.2
12.1090.1010	10	37.0mm	12.0mm	4.2
12.1090.1212	12	40.0mm	13.5mm	4.2
12.1090.1616	16	45.5mm	14.0mm	5.2

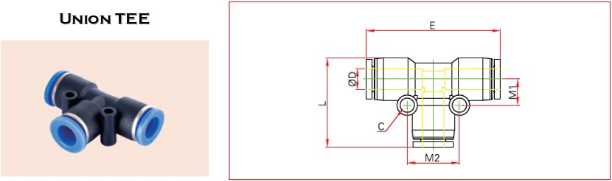

Codigo	OD	E	L	M1	M2	C
12.1200.0404	4	36.5mm	24.0mm	7	14	3.2
12.1200.0606	6	37.5mm	25.5mm	8	16	3.2
12.1200.0808	8	44.5mm	29.5mm	9	18	3.2
12.1200.1010	10	57.0mm	37.0mm	12	24	4.2
12.1200.1212	12	58.0mm	39.0mm	13.5	27	4.2

Uniones Rapidas
